6mm 270mA 18 Degree Step Angle Micro Stepper Motor for Optical Instruments and Camera Lenses

Name: 6mm 270mA 18 Degree Step Angle Micro Stepper Motor for Optical Instruments and Camera Lenses
Brand: VIC-TECH
Price: 1.70 USD

China 6mm 270mA 18 Degree Step Angle Micro Stepper Motor for Optical Instruments and Camera Lenses wholesale

Model Number : VSM0620

Brand Name : VIC-TECH

Place of Origin : Jiangsu, China

Certification : RoHS

MOQ : 1

Price : $1.70-5

Phase : 2

Current per Phase : 270mA

Motor Outer Diameter : 6mm

Body Length : 7mm

Shaft Diameter : 1mm

Step Angle : 18°/Step

Rated Voltage : 3.3V DC

Coil Resistance : 20Ω±10%

Max Starting Frequency : 1300 PPS min. (AT 3.3V DC)

Max Slewing Frequency : 2000 PPS min. (AT 3.3V DC)

Pull-In Torque : 0.7 gf-cm min (AT 800 PPS, 3.3V DC)

Pull-Out Torque : 0.9 gf-cm min (AT 800 PPS, 3.3V DC)

Insulation Class : CLASS E FOR COILS

Insulation Strength : 100V AC FOR ONE SECOND

Operating Temperature : -10~60℃

Contact Now

Product Description

6mm 270mA 18 Degree Step Angle Micro Stepper Motor for Optical Instruments and Camera Lenses

VSM0620 micro stepping motor is a precision micro stepping motor, the outer diameter of the motor is 6MM, the length of the body is 7MM, and the outer diameter of the shaft is 1MM. The shaft length can be appropriately adjusted as required. It can be equipped with output devices such as gears, pulleys, worms, and screws. The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week. This miniature stepping motor is small in size, high in precision and easy to control, and is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields. Our team has more than ten years of experience in the design, development and production of stepper motors, and can realize product development and auxiliary design according to customer needs! Feel free to contact us anytime!

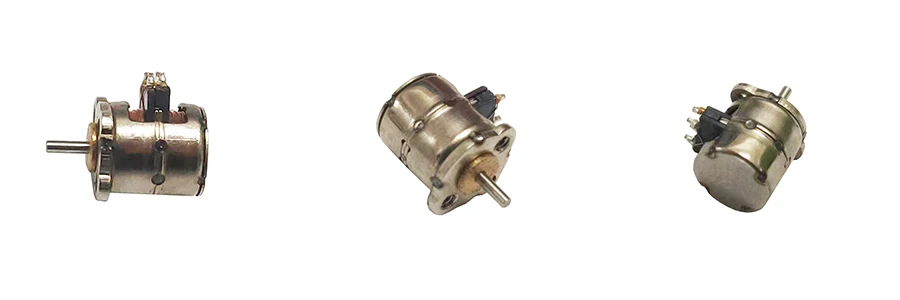

Product: picture:

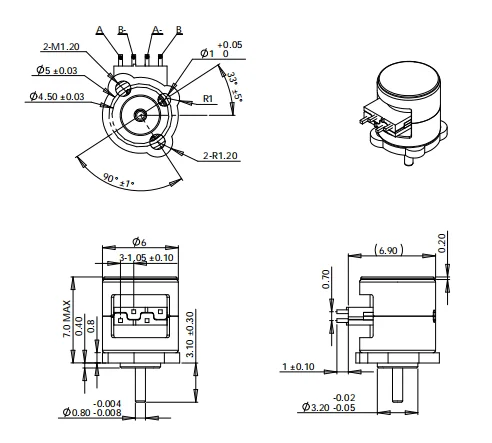

Design Layout (Unit:mm)

Specification

Product Name	6mm micro stepper motor
Model No.	VSM0620
5Rated Voltage	3.3 V DC
Coil Resistance	20Ω±10%
No.Of Phases	2-2 Phases
Step Angle	18°/Step
Max Starting Frequency	1300 PPS min. (AT 3.3V DC)
Max Slewing Frequency	2000 PPS min. (AT 3.3 V DC)
Pull- In Torque	0.7 gf -cm min(AT 800 PPS,3.3 V DC)
Pull- Out Torque	0.9 gf -cm min(AT 800 PPS,3.3 V DC)
Insulation Class	CLASS E FOR COILS
Insulation Strength	100V AC FOR ONE SECOND
Insulation Resistance	10mΩ(DC 100 V)
Operating Temperature	-10~60℃

Packing & Delivery

Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
